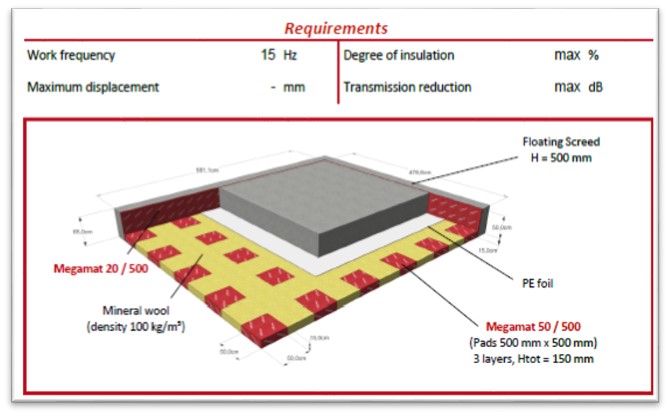

The solution has been designed for the vibration insulation of a ball mill in a painting powders factory. The particular disturbing frequencies required a specifc insulation system made of PAD ME 50/500 to optimize load and performance.

Requirement.

Following some surveys conducted by the acoustic consultant, a very high disturbing component was found which had to be reduced to control the vibrations emitted by the machine to the surrounding environment and allow the owner to guarantee an adequate working environment to the operators on the machine.

Suggested solution.

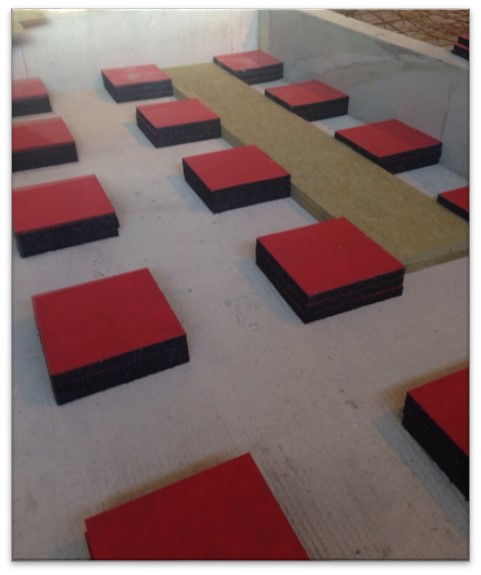

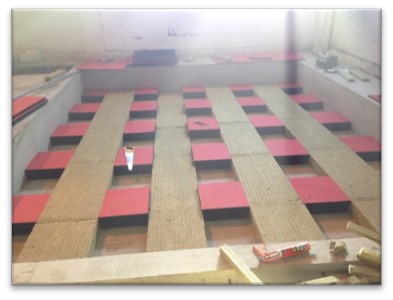

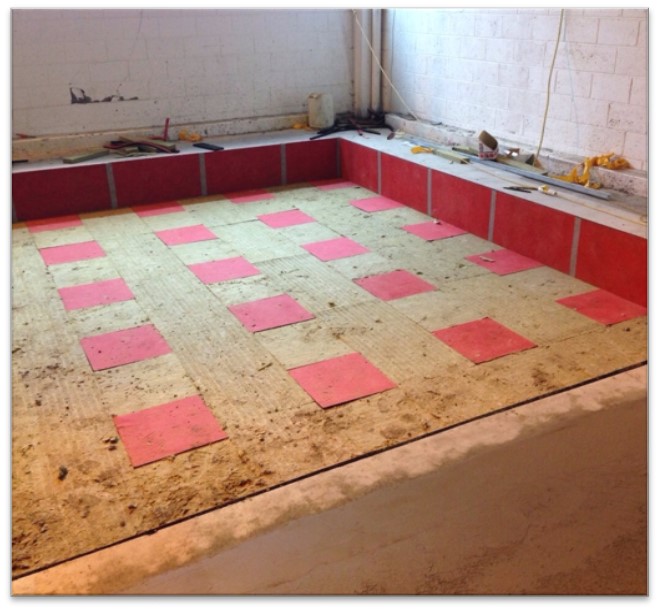

To guarantee the performance required by the designer, a solution with PAD 50/500 was recommended to achieve maximum results with reduced thicknesses.

Result.

The required performance has been achieved by reducing disturbing frequencies by over 85%.
